FYZ1140 DC 12V 4CH Wireless Remote Control Switch for Garage Door Car Alarm Home Security Short-range Wireless Remote Control Industrial Control Products

Description:

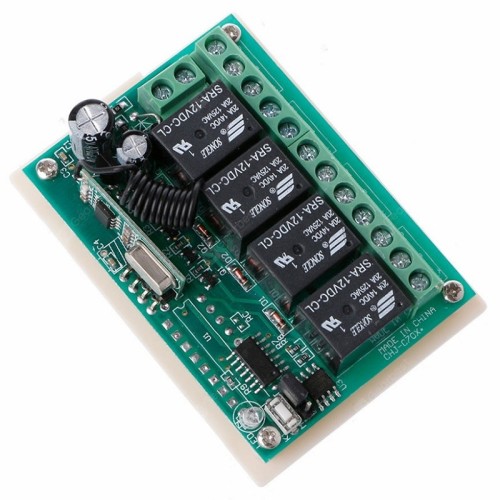

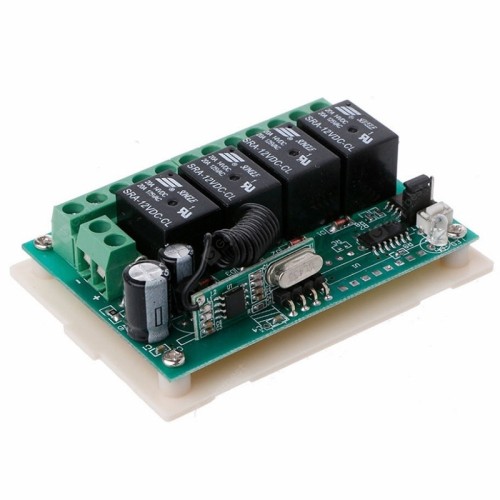

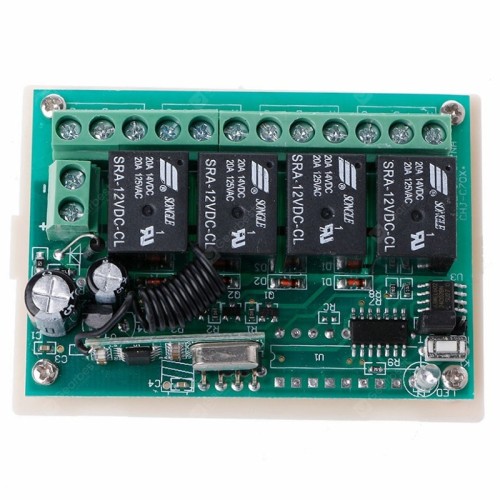

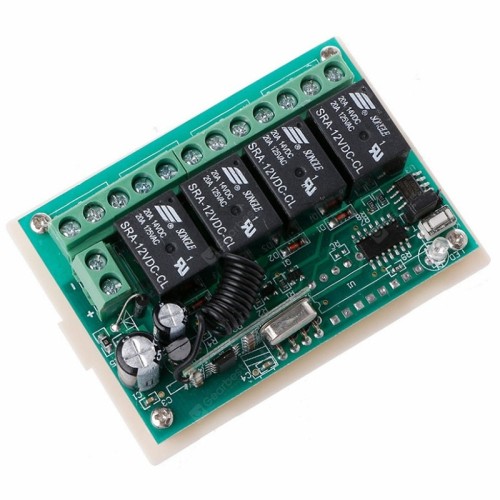

It is a wireless remote learning code switch ( receiver ), the output / working mode can be changed as needed, it is easy to match the transmitter.
It has 4 relays that can turn the device or reverse, so it becomes a reality.
Small size, stable and reliable performance, high receiving sensitivity.

Features:
100% new high quality.
1. Applications ranging from simple internal remote control to automatic control, such as automatic doors, windows, lifting equipment, entrance control, upper and lower controllers, industrial control and safety systems for alarms.
2. These remote controls are designed to control a variety of electronic devices via wireless signals.
3. Very easy to set up and use.
4. Compatible with chips 2262/2260/1527/2240, etc.

1. Press the learning code, indicator light, release your finger, press any button on the remote control, flash the indicator 2 times, then turn off, indicating that you have successfully learned.
2. You can learn more than 12 pieces of 2262 or 1527 chips with different code wireless remotes.
3. Delete/Clear: Press the Learn button for about 8 seconds, the light is off, indicating that your saved information has been successfully deleted.
The output of the worksheet:
1. Self-locking: Connect JP1 to the cutting cover.
2. Jogging: The cutting cover is not occupied, and JP1 and JP2 are not connected.
3. Interlock: Connect Jp2 to the cutting cover.
Trot: Press the button to release your finger on the same button. ( requires a channel switch and a remote button control )
Auto off: Press the button once and press the same button again to turn off ( requires channel button switch and remote control )
Safety device: Press one button to open and press another button to close ( requires one channel switch and two remote buttons )

Specification:
Receiver:
Material: plastic + metal
Working voltage: DC12V
Static condition: less than 6mA
Operating temperature: -40 - + 80 Deg.C
Receive sensitivity: greater than -105dBm
Operating frequency: 433MHz
Here they are together, we have let it work together, so you don't have to worry about their frequency.
Output voltage: DC and AC are optional
Output current: less than 3A
Maximum load current: 10A

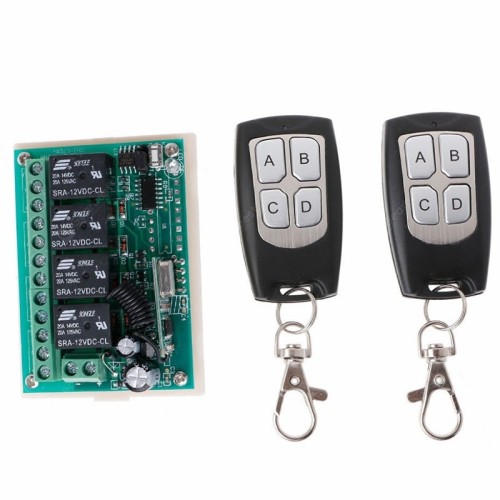

Remote control ( transmitter ):
Material: plastic + metal
Operating voltage: DC 12 V
Frequency: 433MHz
Working current: 13 horsepower
Code: fixed code / learning code
Remote control distance: about 100 meters ( no obstacles )
